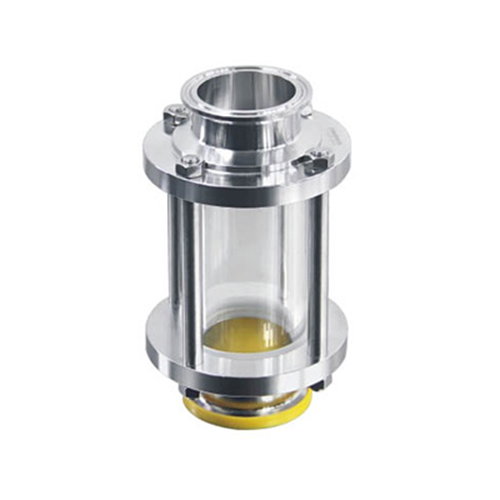

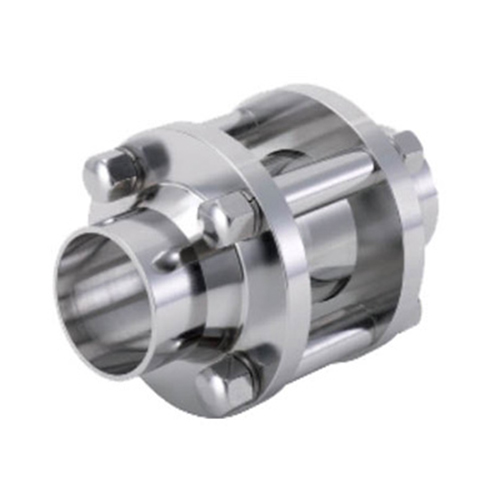

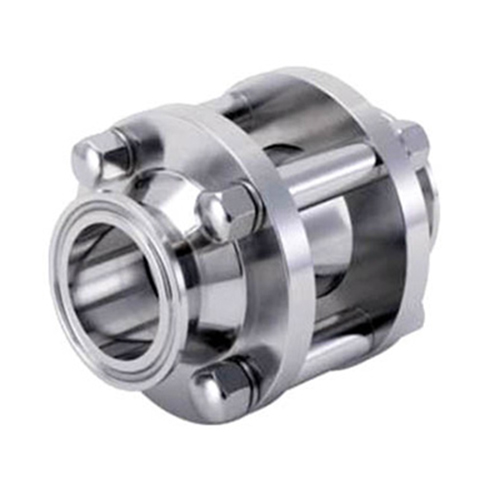

Sanitary Stainless Steel Sight Glass

Application
• pipe fittings can be connect pipeline and equipment with process controller, such as food, beverages, wine, dairy products, pharmaceutical and other high technology requirements of the pipeline.
• size:1”-6”
• Material:304,304L,316L
• Connection: clamp, welded ,threaded

Automatic Reset Aseptic Sampling Valve
• Application: the valve is used for the beer, milk, fruit juice, beverage, pharmaceutical and other industries.
• The aseptic sampling valve is designed for sterilization before and after each sampling.
• Open to Sampling-Valve is opened by rotating the handle
• Closed to Sterilizing-The built-in spring closes the valve. Do Keep hose channel open while sterilizing and recommend to install a small safety valve on the outside if sterilizing by steam.

Technical Specifications
• Connection: clamp, welding, tank connector, multi-channel pipeline connector
• Valve body material：AISI 316L（1.4404）
• Diaphragm：EPDM PTFE
• Max.Temperature：130℃(EPDM)
• Max.Temperature：150℃(PTFE)
• Pressure：10bar

Specifications:1/2″10″,DN10-DN250,
Wall Thickness:1.2mm,1.5mm,1.65mm,2.0mm,2.8mm
Material: ASTM304/316L,1.4301/1.4404，ASME BPE 316L
Implementation of Standards ：DIN11850/11851 SMS ISO IDF DS BS4825 JISG3447
High-grade standard：ASME BPE 316L DIN11866 1.4404
Inner Surface: Mechanical Polishing Ra0.4μm,0.8μm；Electro polishing：Ra0.4μm
Outer Surface：Ra0.8μm

Application
Butterfly valves, whether manually or pneuamtic can be used in fluid product applications in the food processing, pharmaceutical and chemical industries.

Technical specifications
SIZE: 1/2″-12″, DN10-DN300
Material: 304/316L, 1.4301/1.4404
Pressure: 10bar
Temperature: 130 ° C
Connection method: welding, thread, clamp, three-piece flange
Executive Standard: DIN SMS ISO IDF RJT DS

Technical Specifications:

Type: Round, Hexagon, With rubber anti-vibration
Size:1/2″-8″ , DN10-DN200
Material:304/316
Connection: Welded, Threaded
