Sanitary Multi Position Handle Butterfly Valve

Application
The pressure type manhole is mainly used for pressure vessel in the fields of Food, wine, beverage,pharmaceutical,etc.

Design specifications
• Outward opening manhole cover
• Plastic hand wheel or stainless steel hand wheel
• Surface：Ra0.8um-0.5um
• pressure：3-6bar
• Material：AISI304(1.4301)/316L(1.4404)
• Size: 200-800

Applications
Butterfly valve whatever manual or automatic operation can be used in food processing, pharmaceutical and chemical products, industrial fluid applications.

Technical Specification
Size: DN10-DN300, 1/2″-12″
Temperature: 130 ℃
Pressure: 10bar
Material: ASTM T304 / T316L, 1.4301 / 1.4404
Connection: Threaded, Flange Welding, Clamp, etc.
Operation Standard: DIN SMS RJT 3A ISO IDF
Manual operation: Muti-handles, Pull handles
Pneumatic Operation: Single acting, Double acting, Triple action

Application
The manhole is mainly used for pressure vessel in the fields of Food, wine, beverage, pharmaceutical,etc.

Design and features
• Outward opening manhole cover
• Plastic hand wheel or stainless steel hand wheel
• Internal surface：Ra0.8μm-0.5μm
• Outside surface: Mirror polish, Matt finish, sand-blasting finished.
• Max. pressure：0-1bar
• Gasket：EPDM 、NBR、SILICON、
• Height：80-200
• Material：AISI304(1.4301)/316L(1.4404)
• Size: 200-700

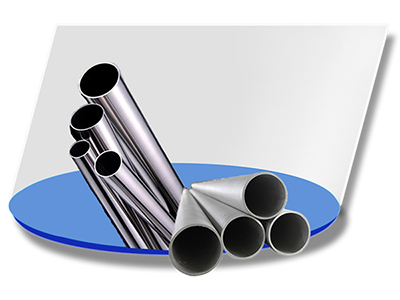

Specifications:1/2″10″,DN10-DN250,
Wall Thickness:1.2mm,1.5mm,1.65mm,2.0mm,2.8mm
Material: ASTM304/316L,1.4301/1.4404，ASME BPE 316L
Implementation of Standards ：DIN11850/11851 SMS ISO IDF DS BS4825 JISG3447
High-grade standard：ASME BPE 316L DIN11866 1.4404
Inner Surface: Mechanical Polishing Ra0.4μm,0.8μm；Electro polishing：Ra0.4μm
Outer Surface：Ra0.8μm

Technical specifications
• Fixed 360 Degree Tank Spray Balls for Cleaning
• Cleaning angle: 360°
• Sphere options: 1) round ball; 2) oval ball
• Material：316L/304
• Connections：female thread/male thread ,clamp, Bolt ,welded
