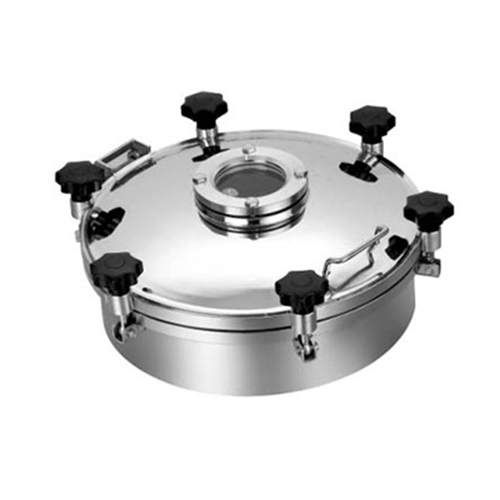

Sanitary Pressure Manhole With Sight Glass

Application
The manhole is mainly used for pressure vessel in the fields of Food, wine, beverage, pharmaceutical,etc.

Design and features
• Outward opening manhole cover
• Plastic hand wheel or stainless steel hand wheel
• Internal surface：Ra0.8μm-0.5μm
• Outside surface: Mirror polish, Matt finish, sand-blasting finished.
• Max. pressure：0-1bar
• Gasket：EPDM 、NBR、SILICON、
• Height：80-200
• Material：AISI304(1.4301)/316L(1.4404)
• Size: 200-700

Application
• pipe fittings can be connect pipeline and equipment with process controller, such as food, beverages, wine, dairy products, pharmaceutical and other high technology requirements of the pipeline.
• size:1”-6”
• Material:304,304L,316L
• Connection: clamp, welded ,threaded

Application
• pipe fittings can be connect pipeline and equipment with process controller, such as food, beverages, wine, dairy products, pharmaceutical and other high technology requirements of the pipeline.
• size:1”-6”
• Material:304,304L,316L
• Connection: clamp, welded ,threaded

Application
• pipe fittings can be connect pipeline and equipment with process controller, such as food, beverages, wine, dairy products, pharmaceutical and other high technology requirements of the pipeline.
• size:1”-6”
• Material:304,304L,316L
• Connection: clamp, welded ,threaded

Application
The pressure type manhole is mainly used for pressure vessel in the fields of Food, wine, beverage,pharmaceutical,etc.

Design specifications
• Outward opening manhole cover
• Plastic hand wheel or stainless steel hand wheel
• Surface：Ra0.8um-0.5um
• pressure：3-6bar
• Material：AISI304(1.4301)/316L(1.4404)
• Size: 200-800
