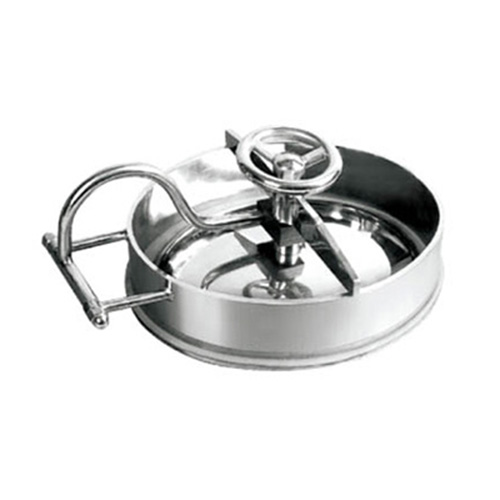

Sanitary Stainless Steel Oval Manhole

Application
The manhole is mainly used for pressure vessel in the fields of Food, wine, beverage, pharmaceutical,etc.

Design and features
• Outward opening manhole cover
• Plastic hand wheel or stainless steel hand wheel
• Internal surface：Ra0.8μm-0.5μm
• Outside surface: Mirror polish, Matt finish, sand-blasting finished.
• Max. pressure：0-1bar
• Gasket：EPDM 、NBR、SILICON、
• Height：80-200
• Material：AISI304(1.4301)/316L(1.4404)
• Size: 200-700

Application
The pressure type manhole is mainly used for pressure vessel in the fields of Food, wine, beverage,pharmaceutical,etc.

Design specifications
• Outward opening manhole cover
• Plastic hand wheel or stainless steel hand wheel
• Surface：Ra0.8um-0.5um
• pressure：3-6bar
• Material：AISI304(1.4301)/316L(1.4404)
• Size: 200-800

Applications
• Flange sight glasses is comprised of stainless steel frame and tempered glass. Through it, operator can observe the flowing of the media clearly and precisely in the fields of food, cosmetics,pharmaceutical and fine chemicals industries.

Technical specifications
• Size from 1.5″-8″-DN40-DN200
• Assemble flange with glass by using hexagon socket bolts
• Material：AISI 304(1.4301) AISI 316L(1.4404)
• Max. Temperature：-10℃-130℃
• Max. Pressure：10bar

Application
• pipe fittings can be connect pipeline and equipment with process controller, such as food, beverages, wine, dairy products, pharmaceutical and other high technology requirements of the pipeline.
• size:1”-6”
• Material:304,304L,316L
• Connection: clamp, welded ,threaded

Automatic Reset Aseptic Sampling Valve
• Application: the valve is used for the beer, milk, fruit juice, beverage, pharmaceutical and other industries.
• The aseptic sampling valve is designed for sterilization before and after each sampling.
• Open to Sampling-Valve is opened by rotating the handle
• Closed to Sterilizing-The built-in spring closes the valve. Do Keep hose channel open while sterilizing and recommend to install a small safety valve on the outside if sterilizing by steam.

Technical Specifications
• Connection: clamp, welding, tank connector, multi-channel pipeline connector
• Valve body material：AISI 316L（1.4404）
• Diaphragm：EPDM PTFE
• Max.Temperature：130℃(EPDM)
• Max.Temperature：150℃(PTFE)
• Pressure：10bar
