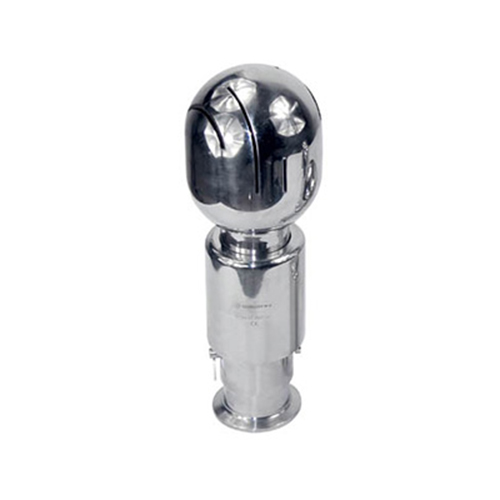

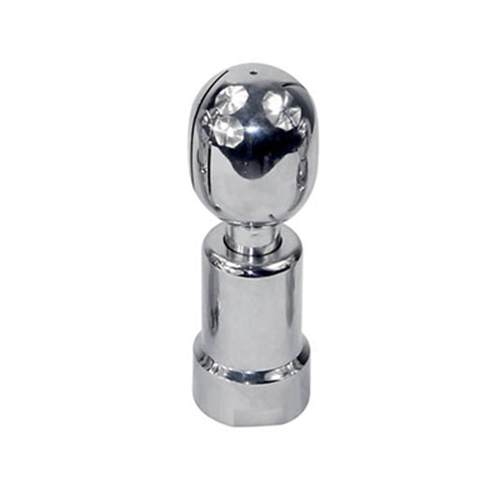

Sanitary Cleaning Ball With Pin

Applicarions
Filter are widely used in the auxiliary service for food processing, cosmetic, chemicals and pharmacy industries. With high hygienic design,it is mainly used to filter the particulates which will damage pumps and some other equipments.The filter is basiclly consist of inlet outlet and filter body. Filter mesh is installed inside to remain all particles equal or greater than mesh

Technical Specifications
• Size：DN25-DN150 1″-6″
• Working temperature：-10℃-120℃(EPDM)
• Max. working pressure：10bar 145PSI
• Gasket：Silicon MVQ FPM
• Connection: clamp,thread, weld
• Standard:DIN,SMS,RJT,IDF,3A
• Hole Dia：0.5mm to 2.0mm
• Mesh size: 30 Grits to 300 Grits

Applicarions
Filter are widely used in the auxiliary service for food processing, cosmetic, chemicals and pharmacy industries. With high hygienic design,it is mainly used to filter the particulates which will damage pumps and some other equipments.The filter is basiclly consist of inlet outlet and filter body. Filter mesh is installed inside to remain all particles equal or greater than mesh

Technical Specifications
• Size：DN25-DN150 1″-6″
• Working temperature：-10℃-120℃(EPDM)
• Max. working pressure：10bar 145PSI
• Gasket：Silicon MVQ FPM
• Connection: clamp,thread, weld
• Standard:DIN,SMS,RJT,IDF,3A
• Hole Dia：0.5mm to 2.0mm
• Mesh size: 30 Grits to 300 Grits

Automatic Reset Aseptic Sampling Valve
• Application: the valve is used for the beer, milk, fruit juice, beverage, pharmaceutical and other industries.
• The aseptic sampling valve is designed for sterilization before and after each sampling.
• Open to Sampling-Valve is opened by rotating the handle
• Closed to Sterilizing-The built-in spring closes the valve. Do Keep hose channel open while sterilizing and recommend to install a small safety valve on the outside if sterilizing by steam.

Technical Specifications
• Connection: clamp, welding, tank connector, multi-channel pipeline connector
• Valve body material：AISI 316L（1.4404）
• Diaphragm：EPDM PTFE
• Max.Temperature：130℃(EPDM)
• Max.Temperature：150℃(PTFE)
• Pressure：10bar

Specifications:1/2″10″,DN10-DN250,
Wall Thickness:1.2mm,1.5mm,1.65mm,2.0mm,2.8mm
Material: ASTM304/316L,1.4301/1.4404，ASME BPE 316L
Implementation of Standards ：DIN11850/11851 SMS ISO IDF DS BS4825 JISG3447
High-grade standard：ASME BPE 316L DIN11866 1.4404
Inner Surface: Mechanical Polishing Ra0.4μm,0.8μm；Electro polishing：Ra0.4μm
Outer Surface：Ra0.8μm

Liquid level gauge / liquid level valve
The level gauge is mainly applied to the tank equipments. The two same gauges or two different gauges are assembled on the tank so that the liquid condition or capacity can be odserved and the sample can be extracted.
• Size:1/4″,3/8″,1/2″,3/4″
• Connections: thread, clamp, weld

Working principle
• when turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling. When turn the hand wheel anti-clockwise, the valve shaft and seal go down,at that time, the valve is closed.
• Thread; Nut; welding; Clamps
