Sanitary Pipe Hanger

Technical Specifications:

Type: Round, Hexagon, With rubber anti-vibration
Size:1/2″-8″ , DN10-DN200
Material:304/316
Connection: Welded, Threaded

Application

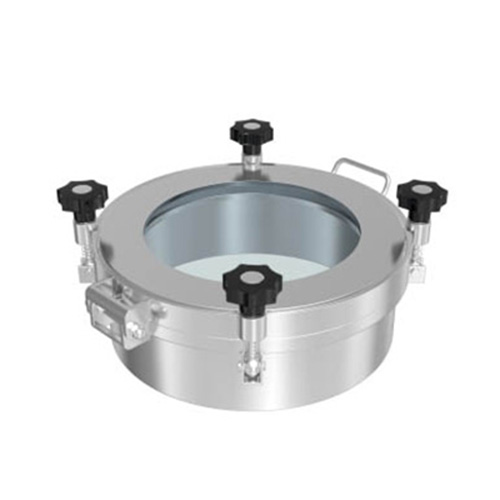

The manhole is mainly used for pressure vessel in the fields of Food, wine, beverage, pharmaceutical,etc.

Design and features
• Outward opening manhole cover
• Plastic hand wheel or stainless steel hand wheel
• Internal surface：Ra0.8μm-0.5μm
• Outside surface: Mirror polish, Matt finish, sand-blasting finished.
• Max. pressure：0-1bar
• Gasket：EPDM 、NBR、SILICON、
• Height：80-200
• Material：AISI304(1.4301)/316L(1.4404)
• Size: 200-700

Working Principle:
Single function (spring reset)
Compressed air from the air intake(A) to enter into the space between the cylinder and the reversing accessory piston(B), made the plunger separate and move to the bottom of cylinder,force the spring
compressed,the air of cylinder is discharge through the vent (C),make the piston(B) anti-clockwise 90 degree rotation through guide groove drive Reversing master device(D)in the meantime.(means valve
opened)
After the solenoid valve for compressed air backward,the piston(B) cylinder move to the top under the elastic spring.The air of middle air cavity is discharge through the air pipe connector by solenoid valve .At that moment the piston(B) clockmise 90 degree rotation through the guide groove drive Reversing master device(D).(means valve closeed

Liquid level gauge / liquid level valve
The level gauge is mainly applied to the tank equipments. The two same gauges or two different gauges are assembled on the tank so that the liquid condition or capacity can be odserved and the sample can be extracted.
• Size:1/4″,3/8″,1/2″,3/4″
• Connections: thread, clamp, weld

Working principle
• when turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling. When turn the hand wheel anti-clockwise, the valve shaft and seal go down,at that time, the valve is closed.
• Thread; Nut; welding; Clamps

Applications
Three way valve divided into manual and pneumatic drive, mainly used in brewing, food processing, dairy and beverage industries.

Technical Specifications
Size: DN25-DN100, 1″-4″
Standard: DIN SMS RJT
Body Structure: Three butterfly valve, Two Butterfly valve, A Butterfly valve control
Connection: Threaded, Clamp, flange, Welding, 3-pc flange
Handle operation: Muilti-handle and Pull handle
Pneumatic Operation: Normally open/ Normally closed, Air/Air
Maximum Pressure: 10bar
Highest Temperature: 130 ℃
