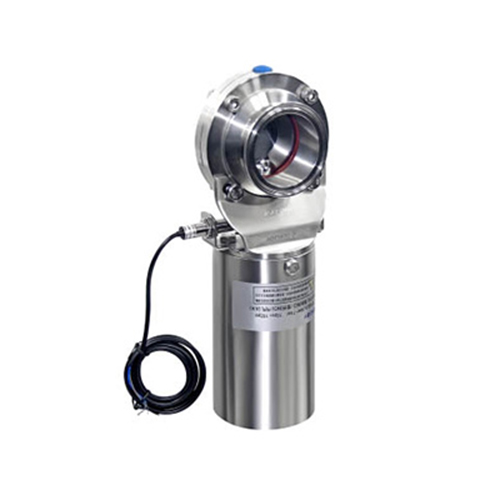

Sanitary Clamp End Butterfly Valve

Applications
Three way valve divided into manual and pneumatic drive, mainly used in brewing, food processing, dairy and beverage industries.

Technical Specifications
Size: DN25-DN100, 1″-4″
Standard: DIN SMS RJT
Body Structure: Three butterfly valve, Two Butterfly valve, A Butterfly valve control
Connection: Threaded, Clamp, flange, Welding, 3-pc flange
Handle operation: Muilti-handle and Pull handle
Pneumatic Operation: Normally open/ Normally closed, Air/Air
Maximum Pressure: 10bar
Highest Temperature: 130 ℃

Application
• Butterfly type ball valve can be installed in pipeline and equipment with process controller, such as food, beverages, wine, dairy products, pharmaceutical and other high technology requirements of the pipeline.

Design Features
• Size：1″-4″,DN25-DN100
• Material ：304/1.4301，316L/1.4404
• Max. temperature：-30℃ – 130℃
• Max. pressure: Vacuum to 10bar
• Small torquemoment
• Excretable(Washable CIP) (option)
• Handle can be installed on the side of the valve body, no matter what the flow direction

Specifications:1/2″10″,DN10-DN250,
Wall Thickness:1.2mm,1.5mm,1.65mm,2.0mm,2.8mm
Material: ASTM304/316L,1.4301/1.4404，ASME BPE 316L
Implementation of Standards ：DIN11850/11851 SMS ISO IDF DS BS4825 JISG3447
High-grade standard：ASME BPE 316L DIN11866 1.4404
Inner Surface: Mechanical Polishing Ra0.4μm,0.8μm；Electro polishing：Ra0.4μm
Outer Surface：Ra0.8μm

Application
The whole glass pressure type manhole is mainly used in a variety of food, wine, beverage, pharmaceutical.

Technical specifications
• Whole glass manhole cover
• Internal surface：Ra0.8μm-0.5μm
• Outside surface: Mirror polish, matt finish, sand-blasting finished.
• Working Pressure：0-3bar
• Gasket: EPDM,NBR,SLICON
• Size：200-600
• Height：80-200
• Material：AISI304(1.4301)/316L(1.4404)

Liquid level gauge / liquid level valve
The level gauge is mainly applied to the tank equipments. The two same gauges or two different gauges are assembled on the tank so that the liquid condition or capacity can be odserved and the sample can be extracted.
• Size:1/4″,3/8″,1/2″,3/4″
• Connections: thread, clamp, weld

Working principle
• when turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling. When turn the hand wheel anti-clockwise, the valve shaft and seal go down,at that time, the valve is closed.
• Thread; Nut; welding; Clamps
